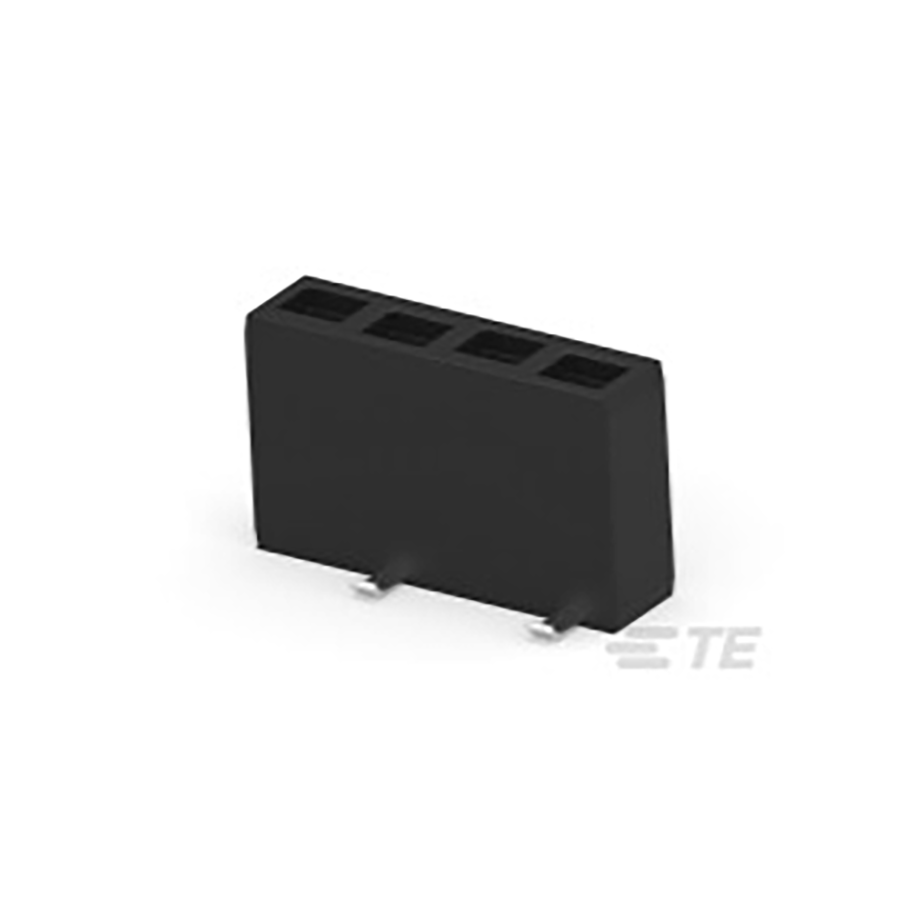

1241152-4
Manufacturer:
TE Connectivity
Mfr.Part #:
1241152-4
Datasheet:
Description:
Headers and Wire Housings SMD/SMT Connector, Receptacle, Socket Number of Positions:4 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 250 V |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -65 °C |
| Voltage Rating (AC) | 250 V |
| Height | 6.2 mm |
| Packaging | Reel |
| Voltage Rating | 250 V |
| Depth | 5.15 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead Pitch | 2.54 mm |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 3 A |
| Working Voltage | 250 V |
| Flammability Rating | UL94 V-0 |
| Orientation | Vertical |
| Lifecycle Status | Production (Last Updated: 1 week ago) |
| Color | Black |
| Gender | Socket (Female) |
| Number of Contacts | 4 |
| ELV | Compliant |
| Number of Poles | 4 |
| Connector Type | Connector, Receptacle, Socket |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Row Spacing | 2.54 mm |
| Housing Material | Polymer |
| Contact Style | Socket |
| Contact Resistance | 12 mΩ |
| Max Voltage Rating (AC) | 250 V |
| Housing Color | Gray |
| Plating | Gold |
| PCB Mounting Orientation | Vertical |
| Plating Thickness | 2.5 µm |
| Contact Gender | Female |
| Stackable | Yes |
| Sealable | No |
| Contact Finish Thickness - Mating | 762 nm |
| PCB Mount Retention | Without |
